SMD machine 858D

The 858D Hot Air Rework Station is a staple on the benches of electronics hobbyists, professional repair technicians, and engineers worldwide. Specifically designed for Surface Mount Device (SMD) soldering and desoldering, this machine offers a perfect balance of precision, compact design, and cost-effectiveness. Whether you are replacing a charging port on a smartphone or salvaging chips from a motherboard, the 858D provides the controlled heat necessary to handle delicate components without damaging the surrounding circuitry.

Core Design and Build Quality

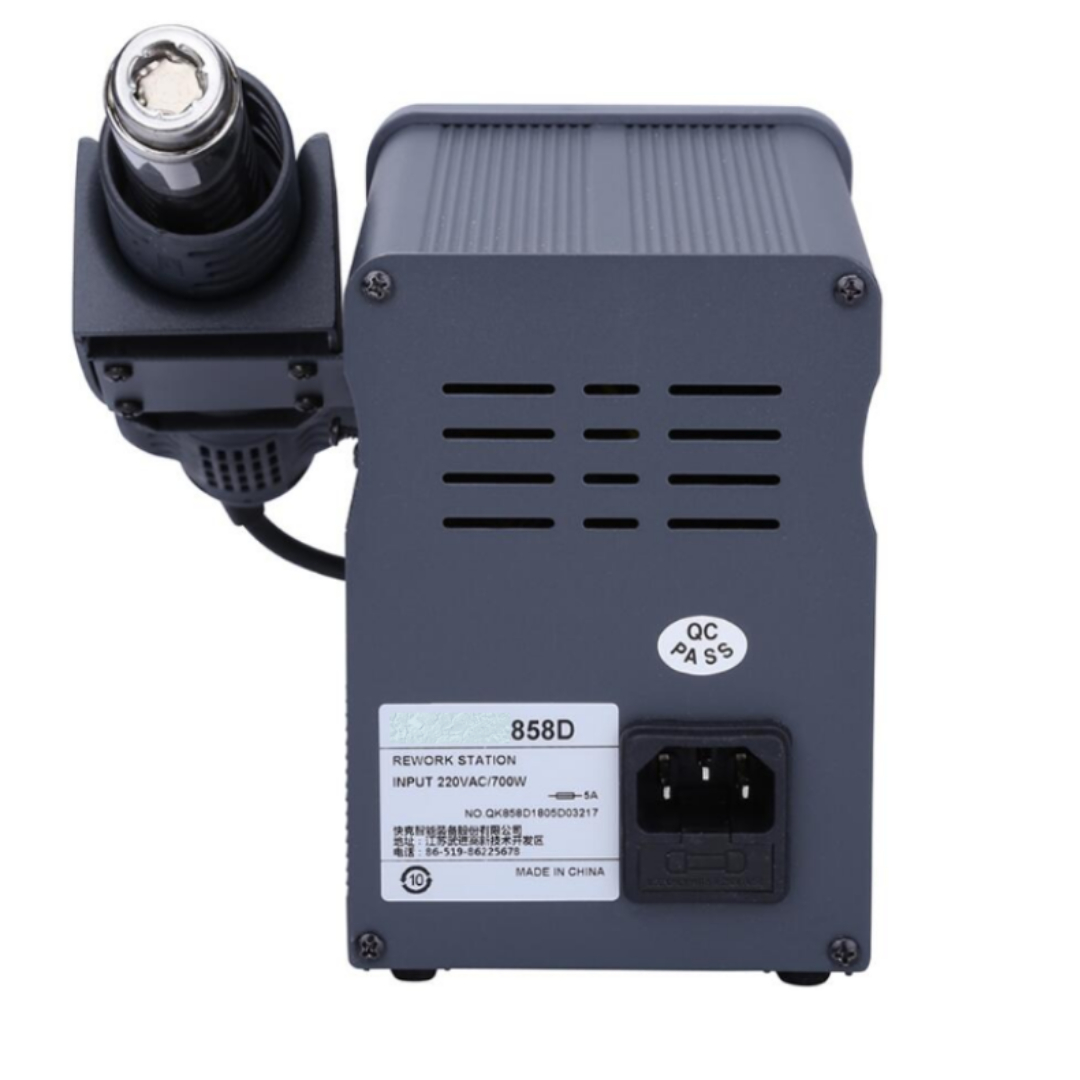

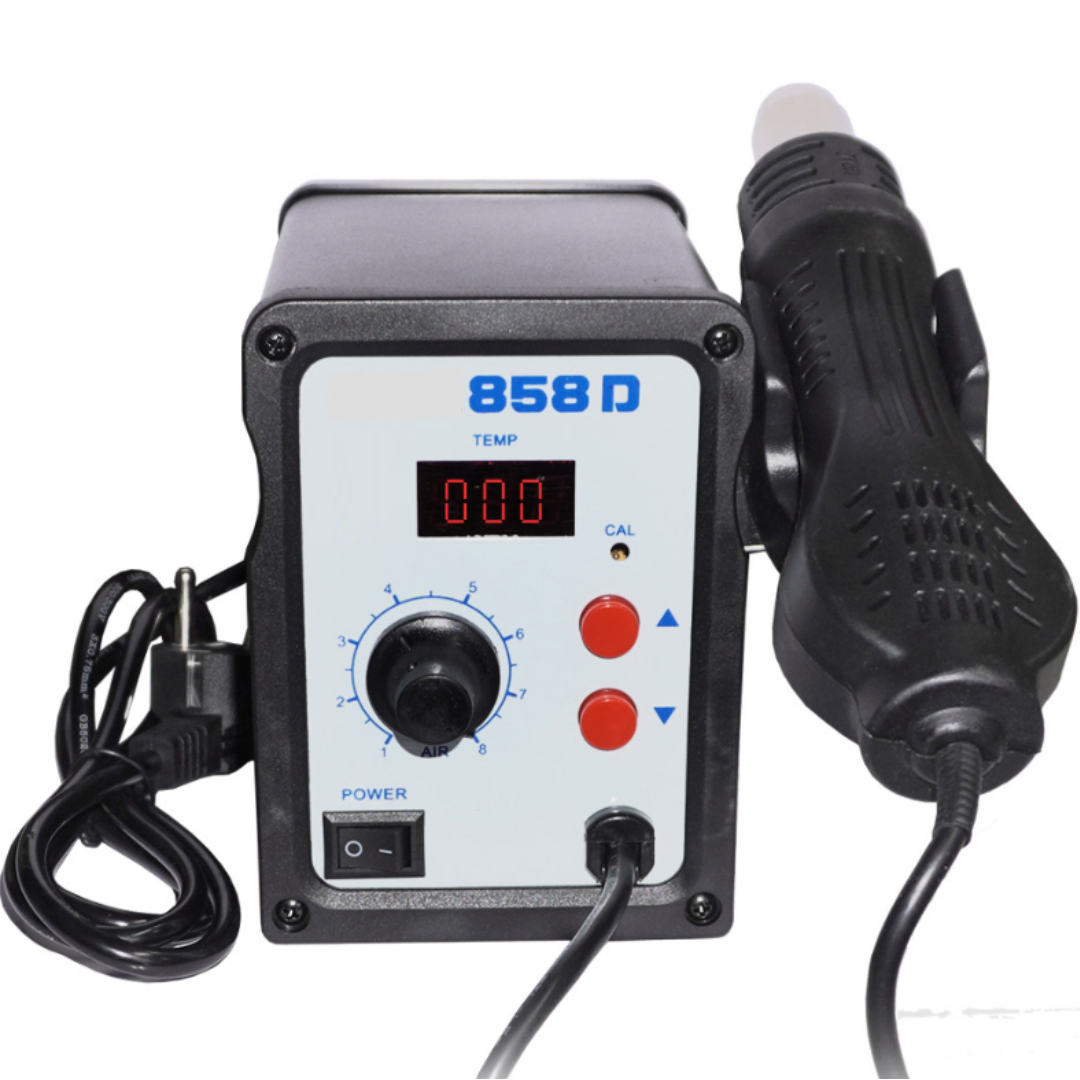

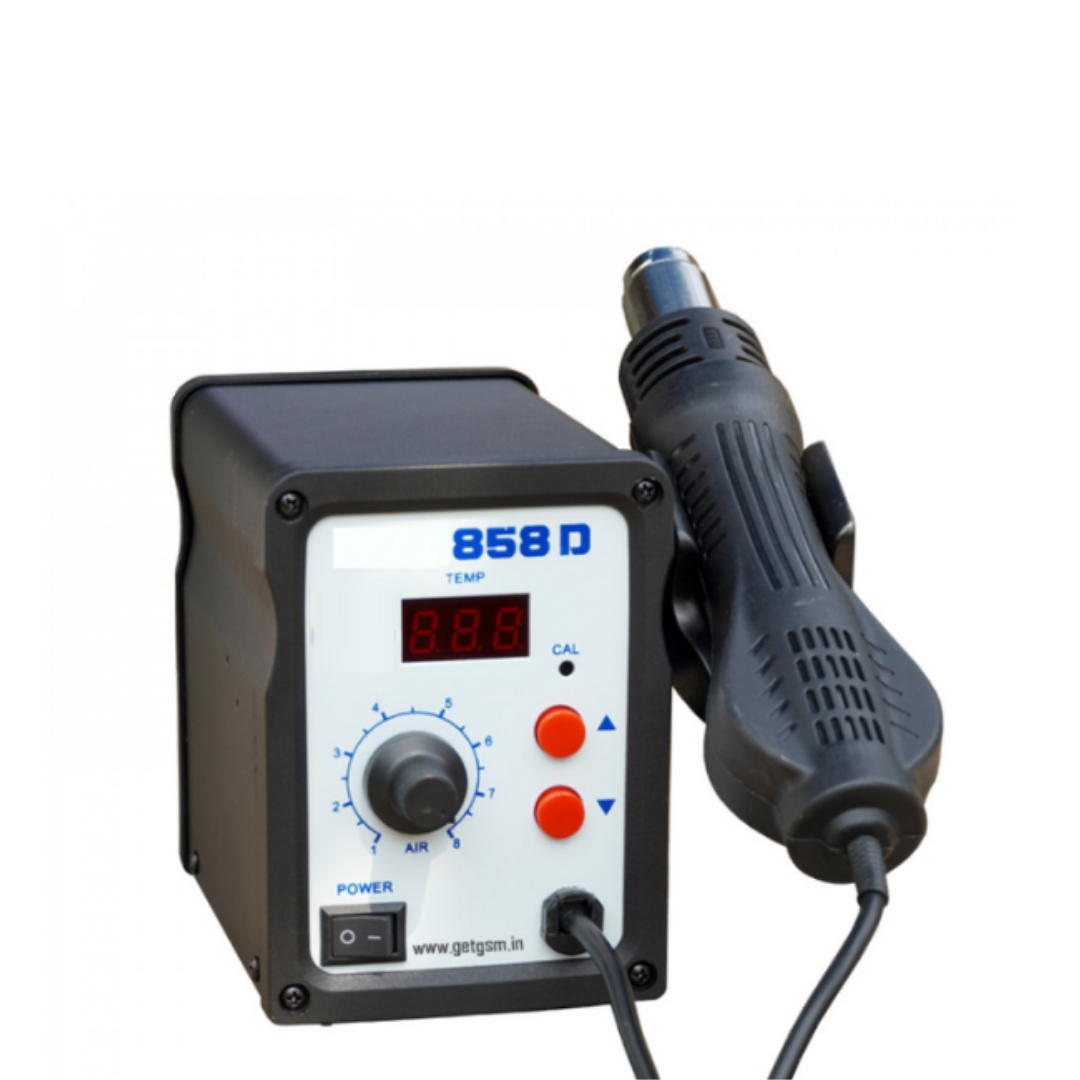

At its heart, the 858D is a closed-loop sensor-controlled system. The main unit is remarkably compact, saving valuable desk space. It features a digital LED display that provides real-time temperature feedback, ensuring accuracy within $\pm 1°C$ once stabilized.

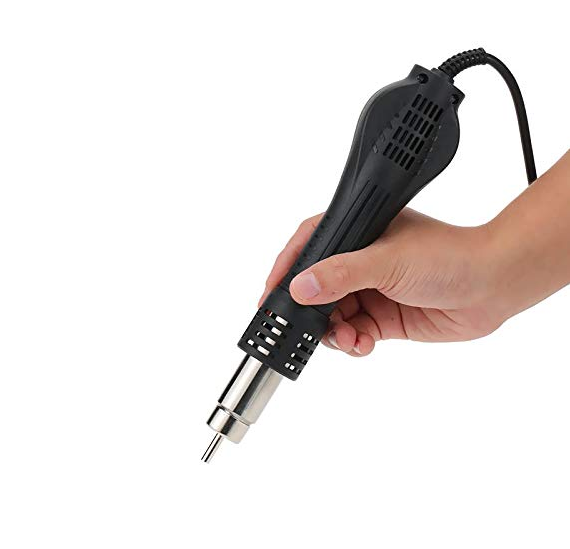

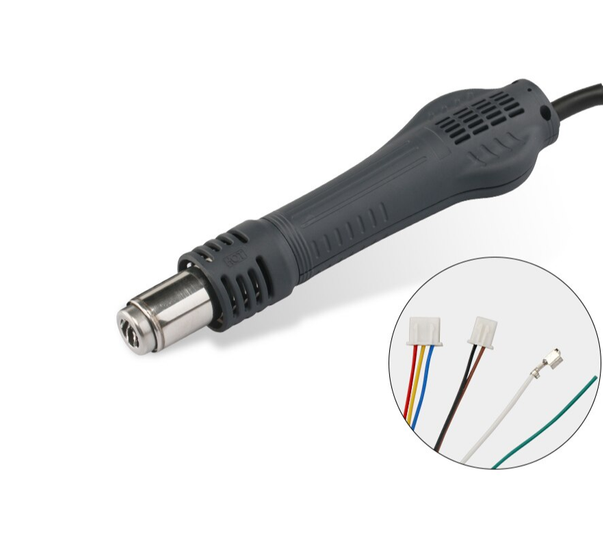

One of its most praised features is the brushless fan motor located inside the handle. Unlike older “diaphragm pump” models that used heavy hoses and vibrated loudly, the 858D is whisper-quiet. The airflow is smooth and linear, which is critical when working with tiny resistors or capacitors that could easily be blown away by turbulent air.

Key Technical Specifications

To understand its performance, here are the primary technical parameters:

• Power Consumption: 700W (Peak)

• Temperature Range: 100°C to 450°C (212°F to 842°F)

• Airflow Volume: Max 120 Liters per minute (L/min)

• Display Type: Digital LED screen

• Noise Level: Less than 45dB

Operational Intelligence: The Induction Sensor

The 858D is “smart” compared to basic heat guns. The handle is equipped with an automatic induction sensor.

1. Work Mode: As soon as you pick up the handle, the system immediately kicks into high gear, reaching your target temperature in seconds.

2. Standby Mode: When you place the handle back into its cradle, the machine automatically begins a cooling cycle. It pumps cool air through the heating element until the temperature drops below 100°C, at which point it enters standby mode and cuts the power.

Pro Tip: This automatic cooling feature is vital. It prevents the heating element from burning out prematurely and ensures the safety of your workspace.

Applications and Versatility

While primarily used for SMD components (like SOIC, CHIP, QFP, PLCC, and BGA), the 858D is a versatile tool for several tasks:

• Component Desoldering: Easily remove multi-pin ICs by heating all pads simultaneously.

• Heat Shrink Tubing: Perfect for insulating wire connections with controlled, low-velocity heat.

• Adhesive Softening: Useful for opening tablets or smartphones where screens are held down by strong industrial glue.

• Plastic Welding: Can be used for minor repairs on plastic casings or 3D-printed parts.

Safety and Maintenance

The 858D includes several safety layers. The heating element is encased in a high-temperature resistant quartz glass tube. If the fan fails or the airflow is blocked, the internal thermal fuse will trip to prevent a fire hazard.

Best Practices for Longevity:

1. Don’t Block the Air: Always ensure the nozzle is clear before turning the unit on.

2. Start Low: When working on a new PCB, start at a lower temperature (approx. 300°C) and increase only if the solder isn’t melting.

3. Nozzle Selection: Use the included nozzles (usually 5mm, 8mm, and 10mm) to match the size of the component you are working on. This concentrates the heat and protects nearby plastic connectors.

Conclusion

The 858D SMD Rework Station is arguably the best entry-to-mid-level hot air station on the market. Its 700W heating capacity is more than enough for lead-free solder, and its silent operation makes it a pleasure to use for long repair sessions. For anyone looking to move beyond basic through-hole soldering into the world of modern micro-electronics, the 858D is the logical first step.
