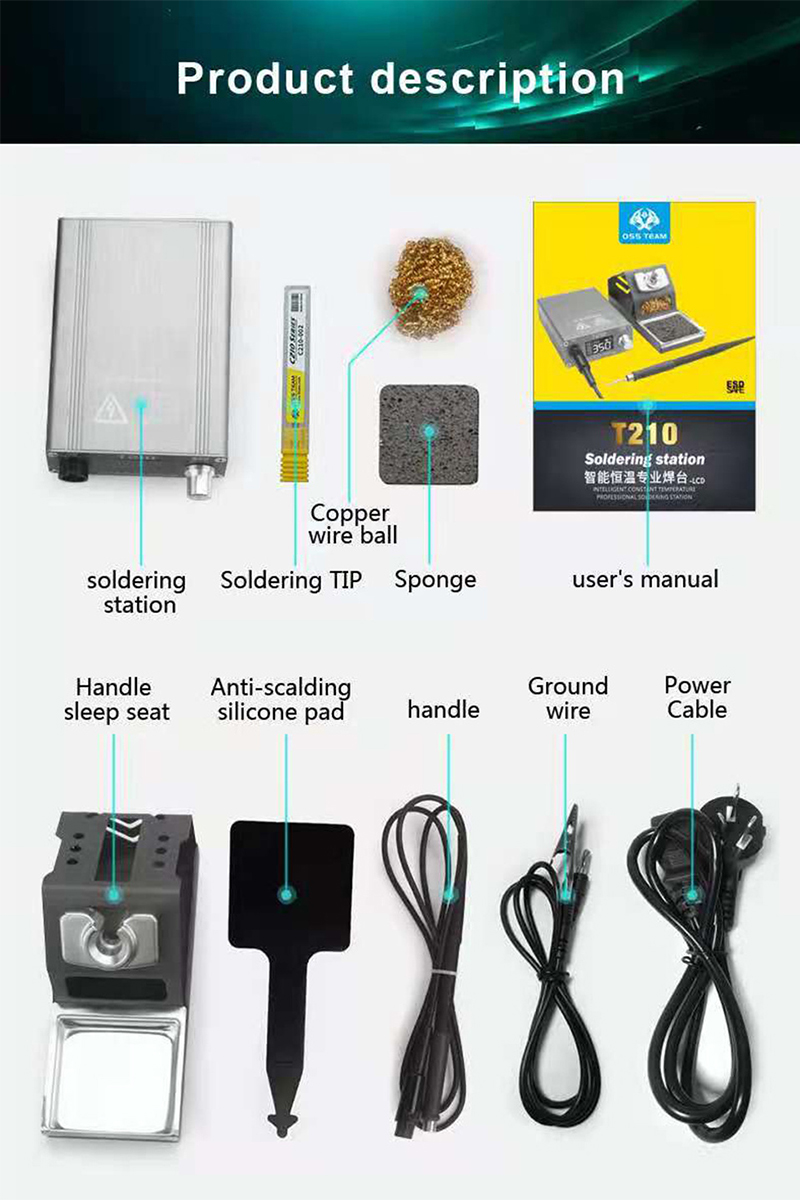

T210 Soldering Iron Station

The T210 Soldering Iron Station is a professional-grade solution engineered specifically for high-precision electronics repair. Whether you are performing delicate motherboard traces, mobile phone IC repairs, or intricate SMD soldering, this station provides the thermal stability and rapid response required for modern circuitry.

Core Technology and Heating Performance

At the heart of the T210 station is its integrated heating element technology. Unlike traditional irons where the tip sits over a ceramic heater, the T210 utilizes a cartridge-style system. The heating element and sensor are built directly into the tip, ensuring there is virtually no distance between the heat source and the work surface.

• Rapid Startup: Achieve working temperatures in as little as 2 seconds. This efficiency eliminates downtime and allows technicians to move between tasks instantly.

• Intelligent Thermal Management: The station employs a sophisticated PID (Proportional-Integral-Derivative) algorithm to monitor temperature hundreds of times per second. This prevents temperature “overshoot” and ensures the tip remains at a constant heat, even when touching large ground planes that act as heat sinks.

Precision and Ergonomics

The T210 handle is significantly slimmer and lighter than standard soldering handles. This “pencil-style” grip allows for maximum visibility under a microscope and reduces hand fatigue during long repair sessions. The short distance from the grip to the tip provides exceptional control, making it easier to navigate crowded PCBs without damaging neighboring components.

Smart Features for Longevity

To protect both the equipment and the delicate components being soldered, the T210 station includes several “smart” safety features:

1. Automatic Sleep Mode: When the handle is placed back into the stand, the station immediately drops the temperature to a standby level (usually 150°C–200°C). This drastically extends the lifespan of the soldering tip and prevents oxidation.

2. Instant Wake-Up: The moment the handle is lifted, the station surges back to the target temperature before the tip even touches the board.

3. Digital Interface: Most T210 units feature a high-definition LED or LCD screen that displays real-time temperature, power output percentages, and customizable preset channels for switching between leaded and lead-free profiles.

Technical Specifications

Why Choose the T210 for Mobile & Logic Board Repair?

Modern devices use Lead-Free Solder, which has a higher melting point and requires precise thermal control to avoid “cold” solder joints. The T210 excels here because it can deliver high bursts of energy to the joint without overheating the surrounding plastic connectors or sensitive chips.

The C210 tip series offers various shapes—including ultra-fine needles, curved tips for reach, and knife edges for bridge removal—making this station a versatile powerhouse for any technician’s workbench.

Maintenance Tips for Peak Performance

To get the most out of your T210 station:

• Use Brass Wool: Clean the tip using brass wire sponges rather than wet cellulose sponges to prevent thermal shock to the integrated heater.

• Tin the Tip: Always leave a small amount of solder on the tip before turning the station off or placing it in sleep mode to prevent oxidation.

• Low Temp Preference: Whenever possible, solder at the lowest effective temperature (330°C–350°C) to preserve the plating on the fine precision tips.
