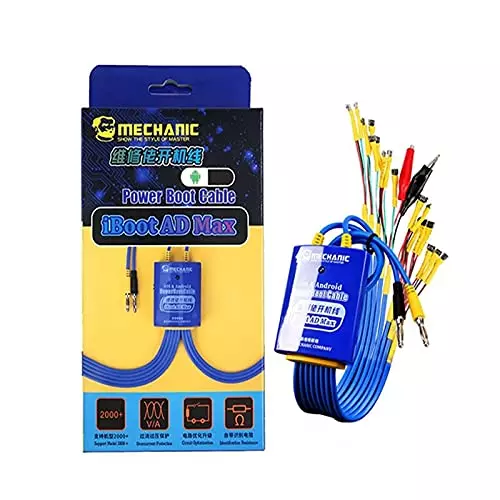

MECHANIC iBoot Android Power Cable AD Max

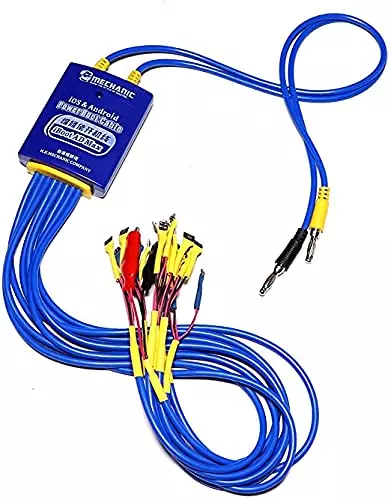

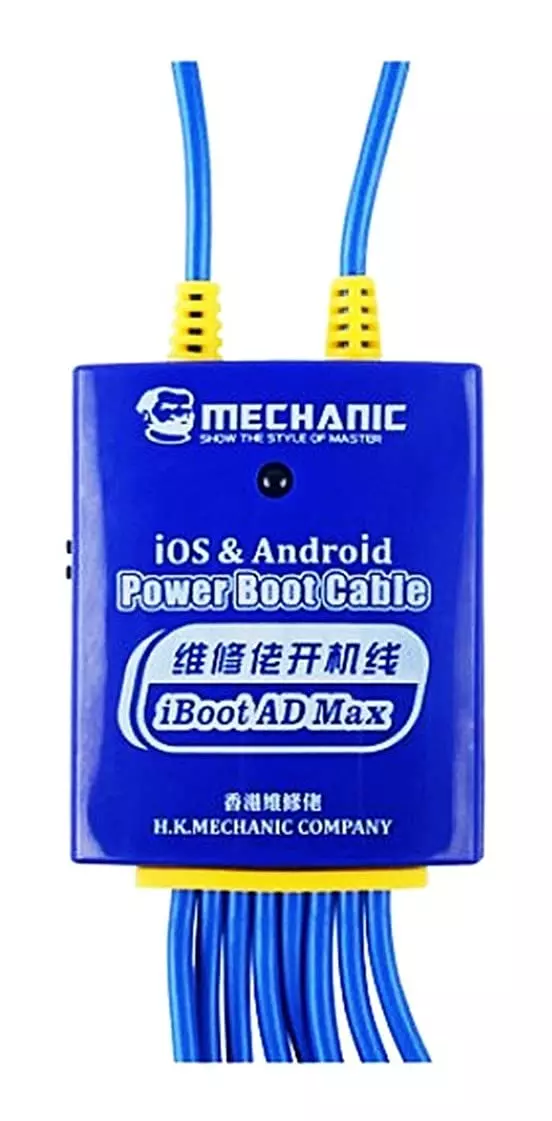

MECHANIC iBoot AD Max: The Ultimate Android Power Boot Cable

The MECHANIC iBoot AD Max is a professional-grade, high-precision power supply cable designed specifically for Android mobile phone repair and diagnostics. As modern smartphones become increasingly complex, traditional methods of powering up a device without a battery are no longer sufficient. The iBoot AD Max addresses this by providing a stable, regulated, and safe power connection directly to the motherboard’s battery connector. This tool is indispensable for technicians who need to perform “dead phone” diagnostics, current consumption analysis, and long-term testing without the limitations of a physical battery.

Key Technical Specifications

• Model: Mechanic iBoot AD Max (Android High-End Version)

• Support: Compatible with over 3000+ Android models.

• Input Voltage: Recommended $3.7V – 5V$

• Output Current: $0A – 3A$ (Automatic Intelligent Limiting)

• Material: High-quality, flexible FPC (Flexible Printed Circuit) and environment-friendly TPE.

• Connectivity: Standard USB interface for DC Power Supply connection.

Advanced Features & Design

1. Universal Compatibility

The iBoot AD Max features a comprehensive array of battery connector headers. It supports nearly all major Android manufacturers, including:

• Samsung, Huawei, Xiaomi, OPPO, VIVO, Meizu, Lenovo, ZTC, One Plus, Letv, and many more.

  The headers are engineered to snap onto the motherboard with a precise click, ensuring a secure connection that won’t slip during testing.

2. Intelligent Protection System

Safety is paramount when dealing with sensitive motherboards. The iBoot AD Max is equipped with an intelligent IC chip that provides:

• Over-Voltage Protection: Automatically cuts off if the input voltage exceeds $4.8V$ to prevent burning the CPU.

• Over-Current Protection: Prevents short circuits from damaging the power supply or the device under repair.

• Reverse Polarity Protection: If the leads are connected incorrectly, the cable will not pass current, saving the board from catastrophic failure.

3. Durable FPC Construction

Unlike cheaper cables that use stiff wires, the iBoot AD Max utilizes Flexible Printed Circuit (FPC) technology for its connectors. This makes the cable incredibly resistant to folding and tearing. The high-density copper core ensures minimal resistance and stable current transmission, which is critical when measuring the subtle “boot-up” current spikes used to diagnose software vs. hardware hangs.

4. Sustainable and Heat Resistant

The exterior is wrapped in a high-grade TPE material that is both environmentally friendly and heat resistant. This is particularly useful in a soldering environment where accidental contact with a hot iron is possible.

Why Professionals Choose the iBoot AD Max

In a professional repair environment, time and accuracy are everything. The iBoot AD Max allows you to bypass the battery entirely. This is essential when:

1. A battery is swollen or dangerous.

2. The battery is completely discharged and won’t take a charge, but you need to check if the phone actually turns on.

3. Tracing a Short Circuit: By connecting this to a DC Power Supply, you can observe the exact milliamp (mA) draw. A high draw before pressing the power button immediately signals a primary rail short.

Tech Tip: Use the iBoot AD Max in conjunction with a digital DC Power Supply to see the “Boot Sequence” current. A device stuck at $50\text{mA}$ usually indicates a CPU/RAM communication issue, while a jump to $150\text{mA}$ followed by a drop suggests a display or backlight problem.

Package Includes:

• 1 x USB Main Power Input Cable

• Multiple FPC Connector Arrays for various Android Brands

The MECHANIC iBoot AD Max is not just a cable; it is a diagnostic bridge that brings clarity to complex repairs. Whether you are performing data recovery or a simple screen replacement, this tool ensures that your power source is the most reliable part of your workbench.
